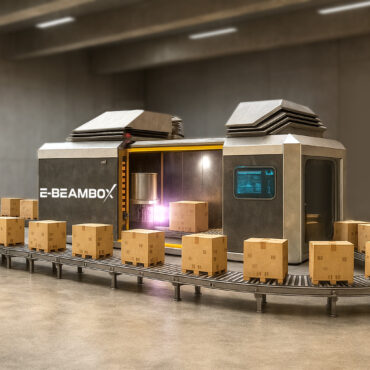

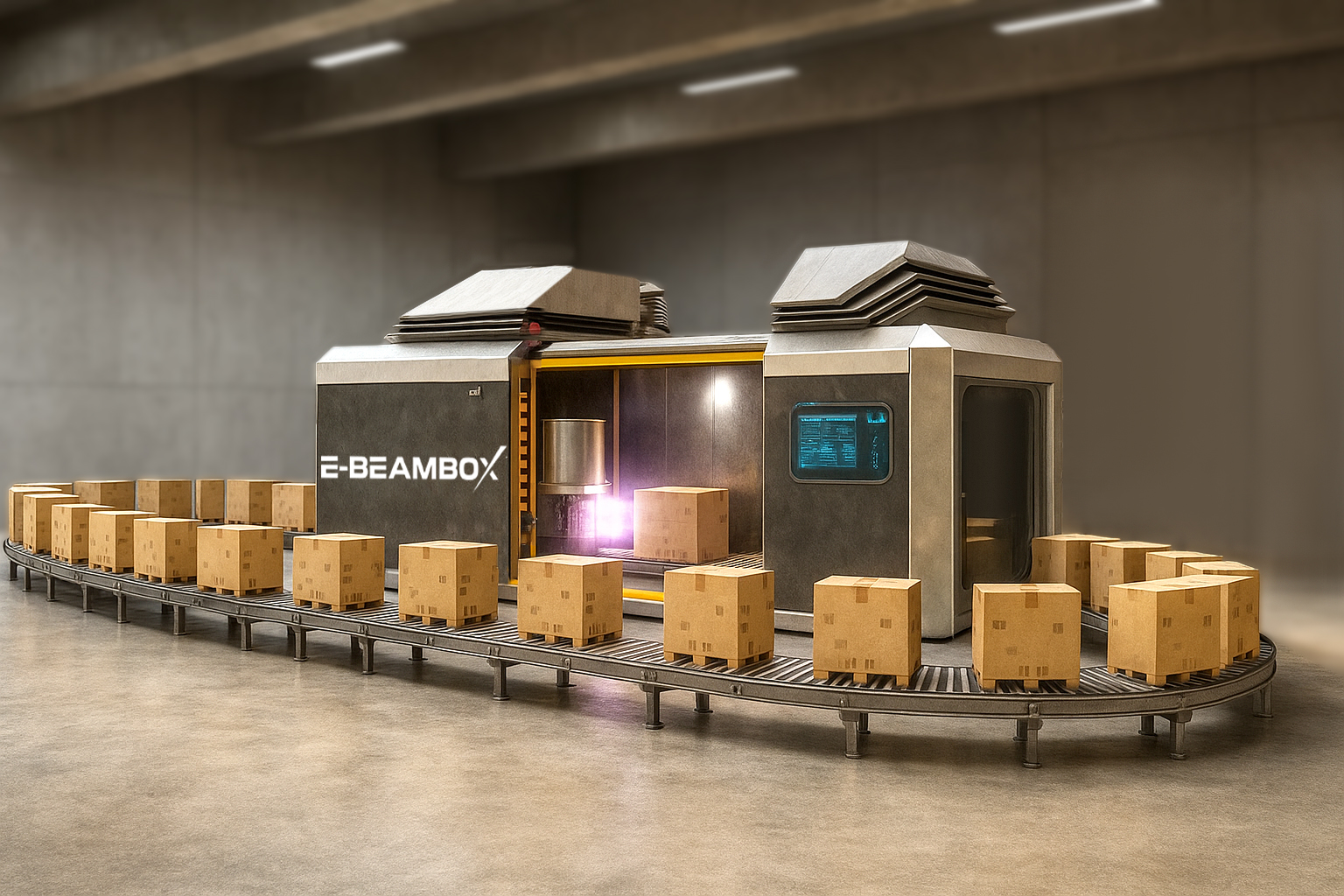

E-Beambox — A Universal Equipment for Food Product Sterilization
Three operating modes and flexible installation options allow seamless integration into any production workflow — from cutting and processing lines to finished-goods warehouses or dedicated sterilization centers.
E-Beamboxes may also be equipped with robotic manipulators that can install/remove boxes from the conveyor system, as well as place them on pallets afterwards. These robots enable operation in a «dark factory» mode.
The advantages of this operation mode:
1) Eliminated risk of radiation exposure for personnel 2) Ability to operate production around the clock

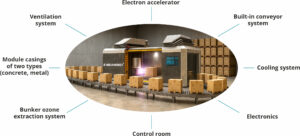

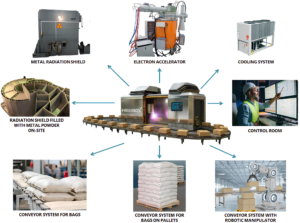

CONFIGURATION OF THE BOX
CHARACTERISTICS OF MODELS OF THE BOX
| Model | Operation Mode | Energy | Power | Product Thickness (at a product density = 1) | Supply of products to the conveyor system |
|---|---|---|---|---|---|

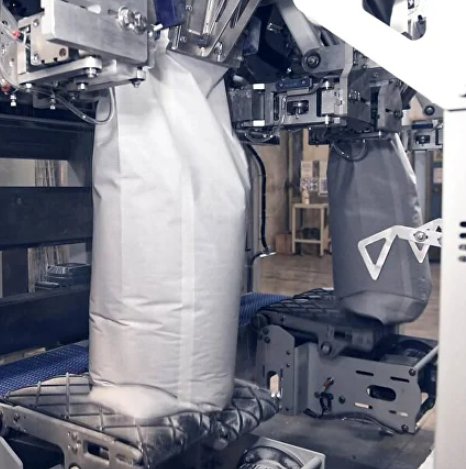

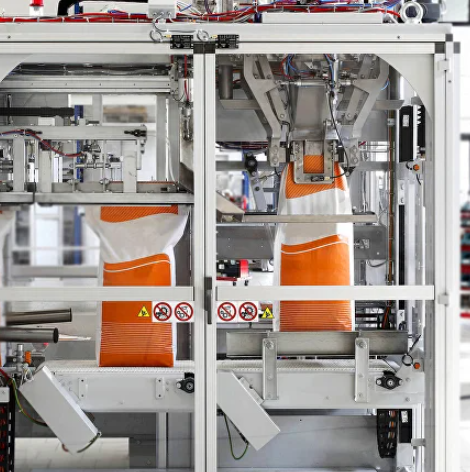

| E-BEAMBOX B.5VE | E-beam | 5 MeV | 50-100 kW | ≤ 50 mm | In boxes and bags of small sizes In one layer |
| E-BEAMBOX B5.XRAY | X-Ray/E-beam | 5 MeV | 50-100 kW | > 50 mm | In boxes and bags of large sizes In boxes and bags on pallets |
| E-BEAMBOX B5.XRAY.C | X-Ray | 5 MeV | 100 kW | Product treatment is carried out through the walls of closed containers | Containers and reefers |

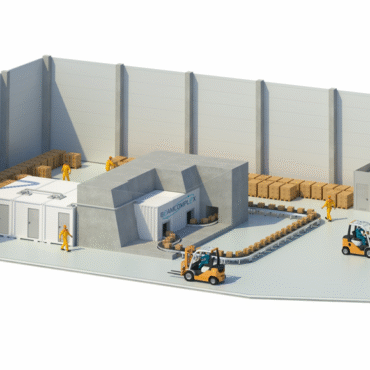

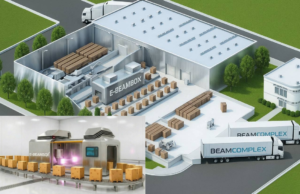

FLEXIBLE INSTALLATION OPTIONS

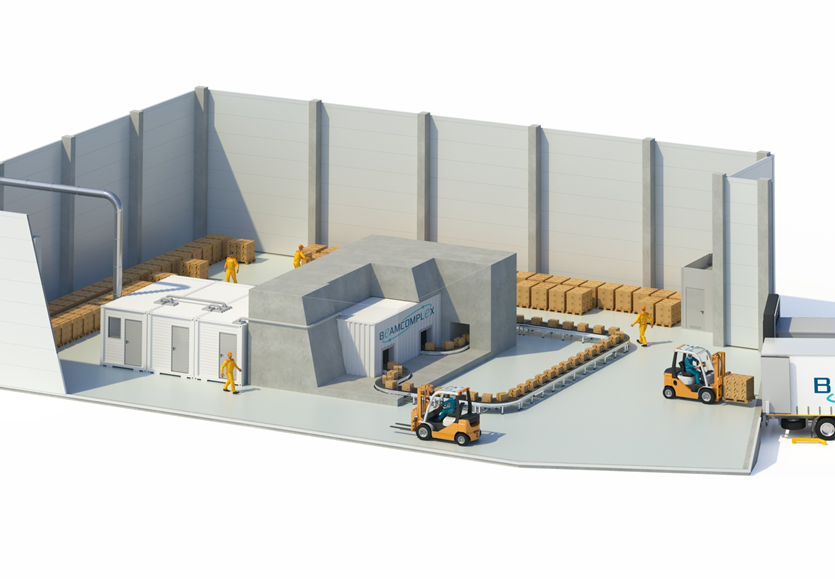

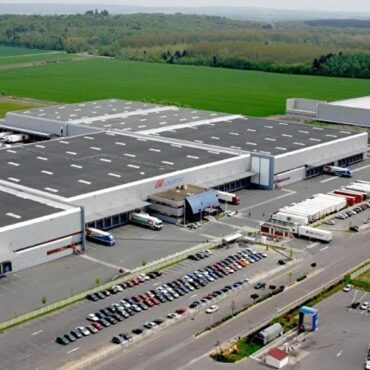

The system can be installed directly at a production facility or deployed within a dedicated sterilization center, depending on operational needs and throughput requirements.

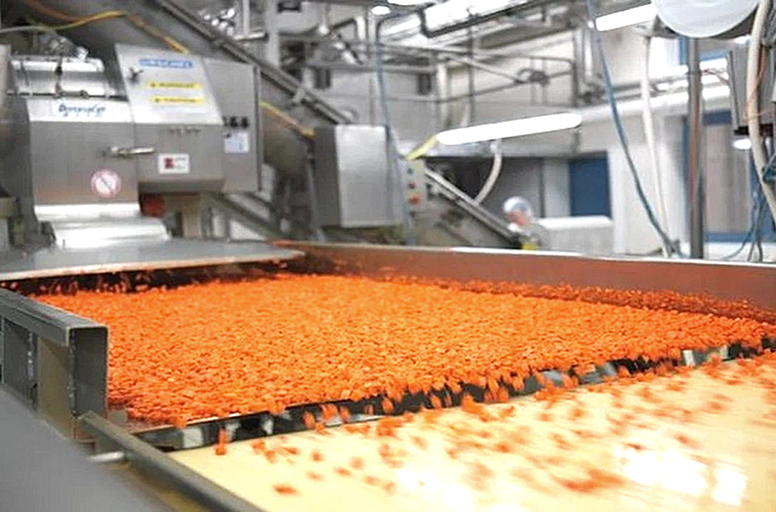

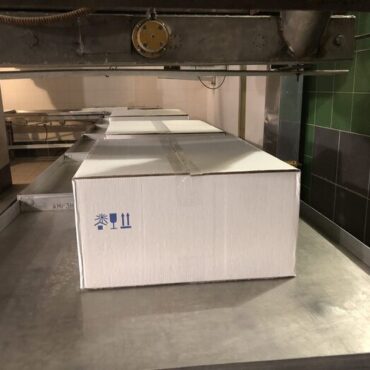

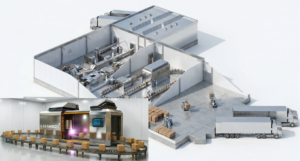

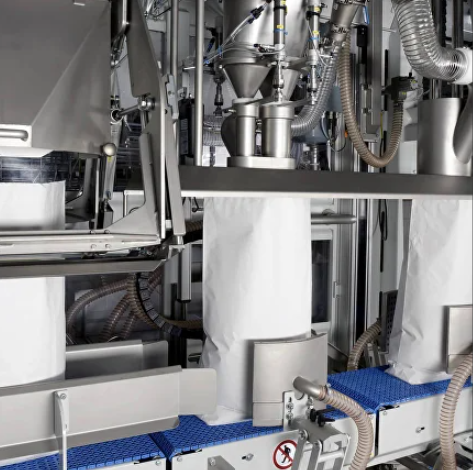

CUTTING DEPARTMENT
The E-beam mode is designed for high-speed treatment of thin products and can be easily integrated into existing production lines.
Model: E-BEAMBOX B5.VE

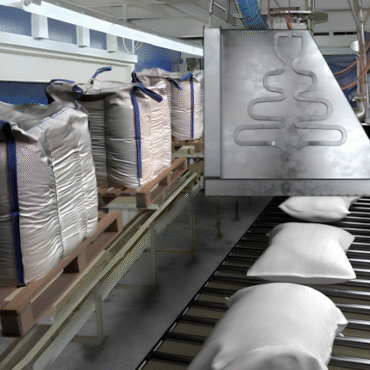

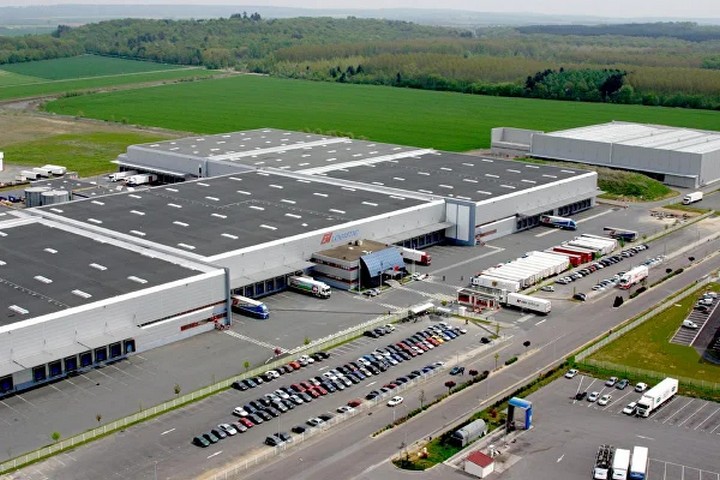

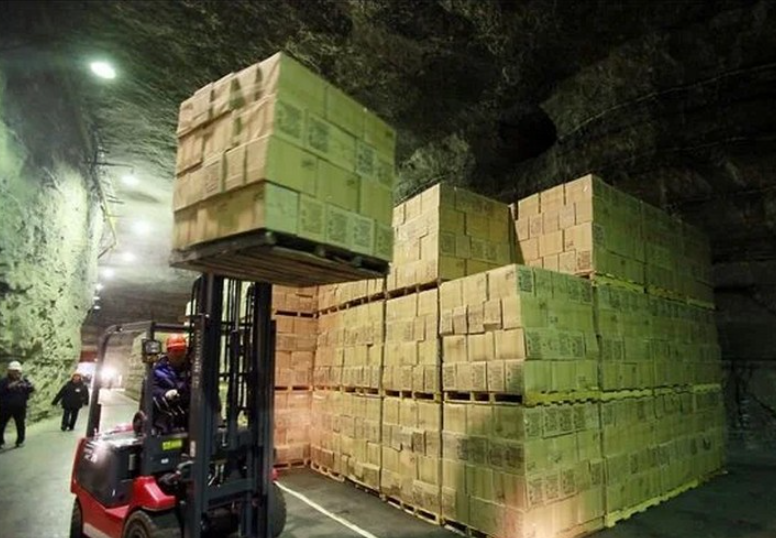

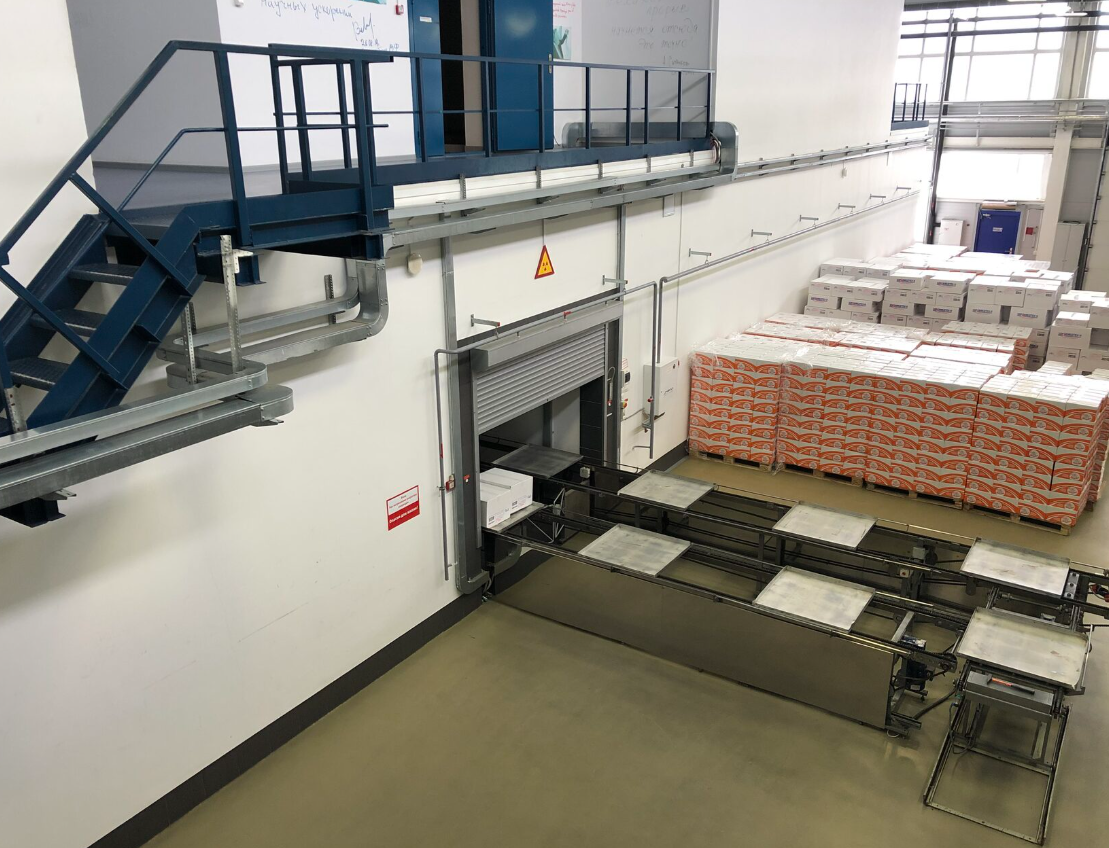

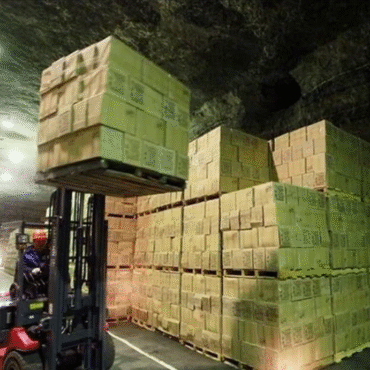

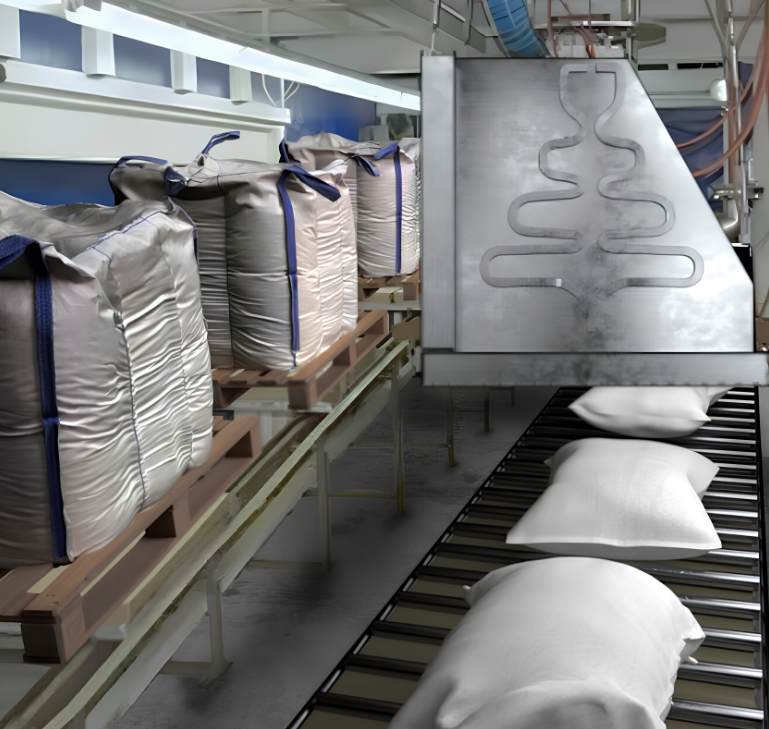

FINISHED GOODS WAREHOUSE / COLD STORAGE
The X-Ray mode provides deep radiation penetration and is suitable for processing large packages and dense materials.
Model: E-BEAMBOX B5.XRAY

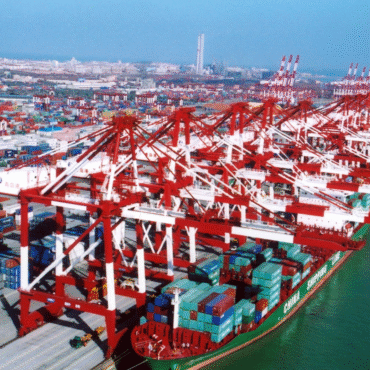

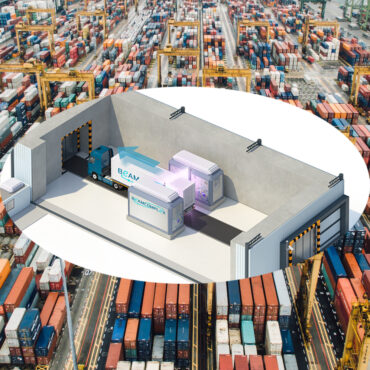

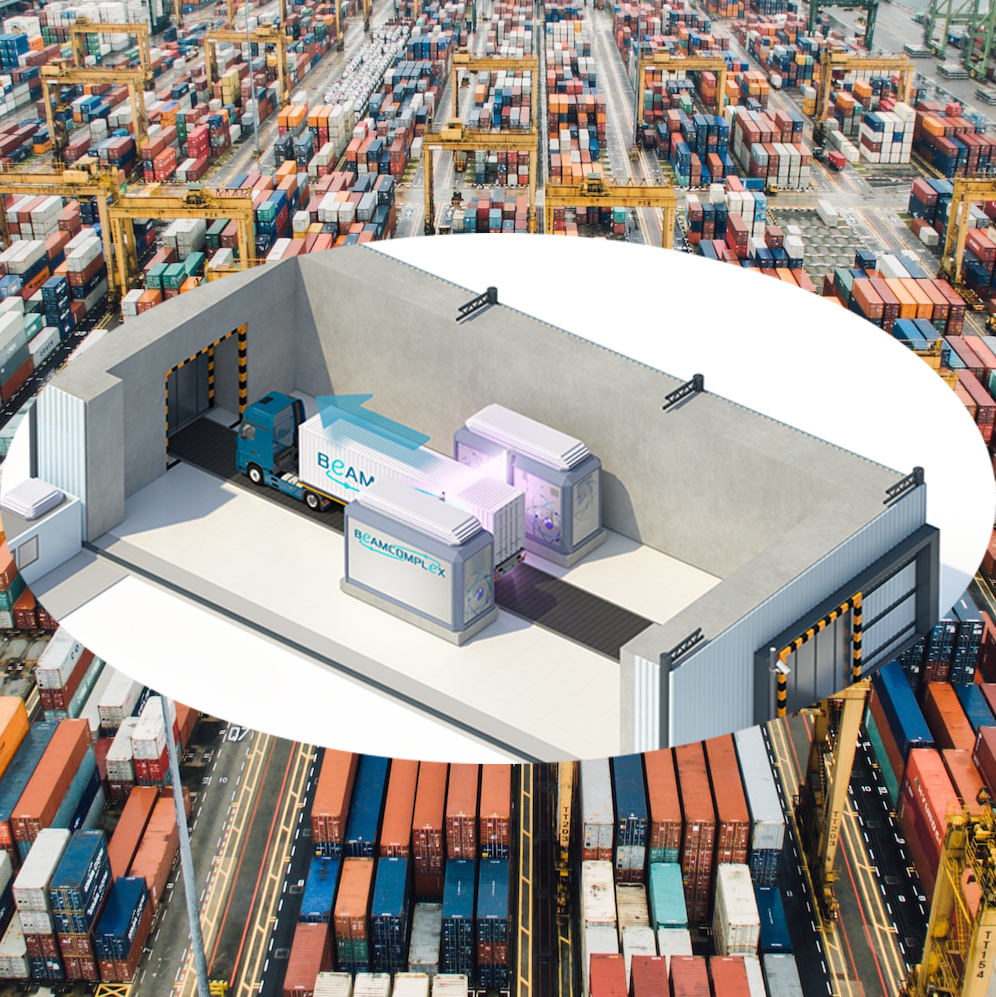

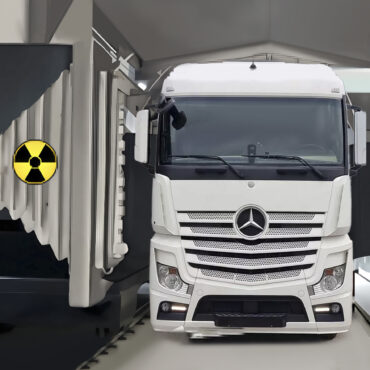

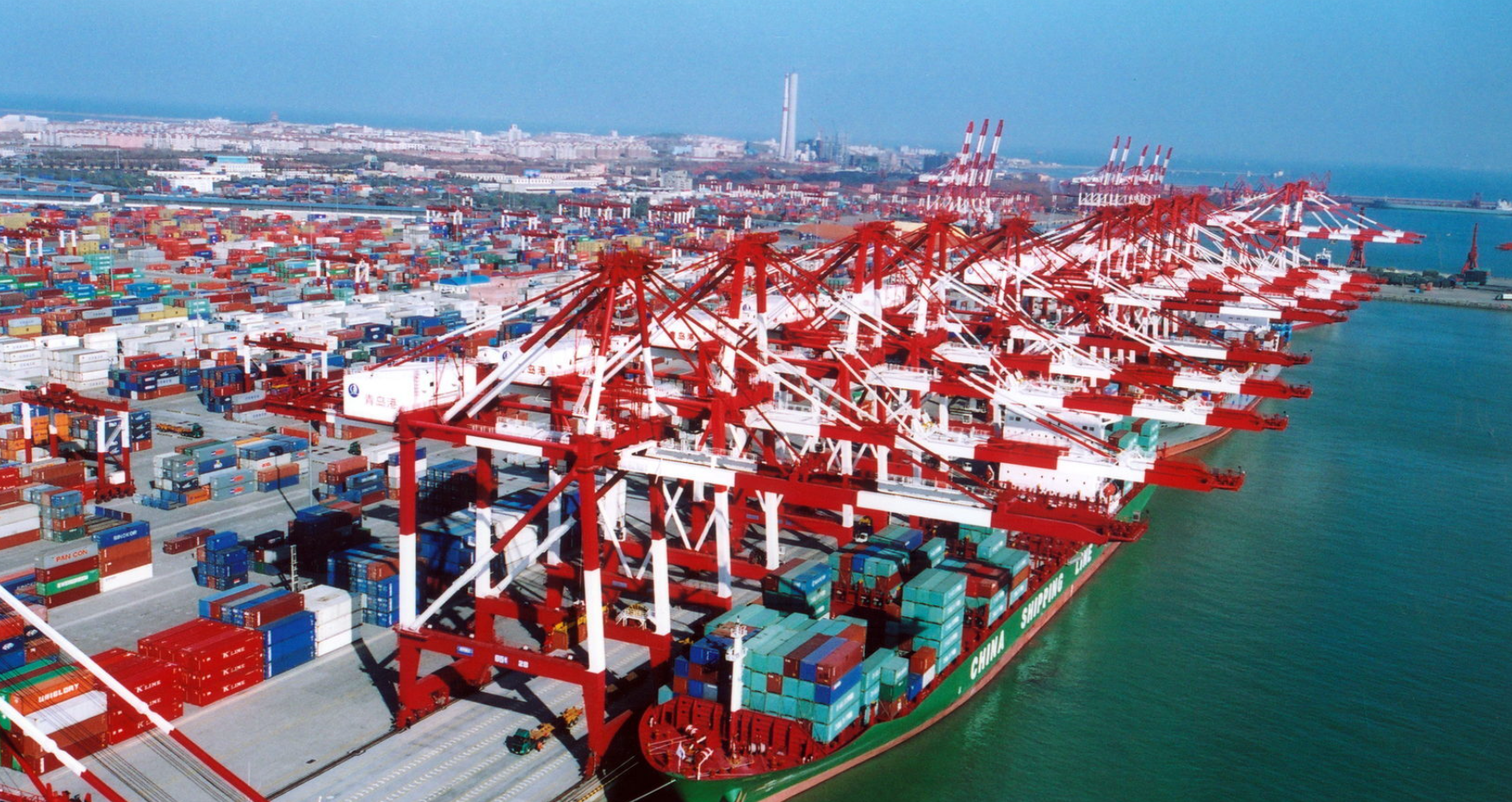

CONTAINER CARGO ZONE

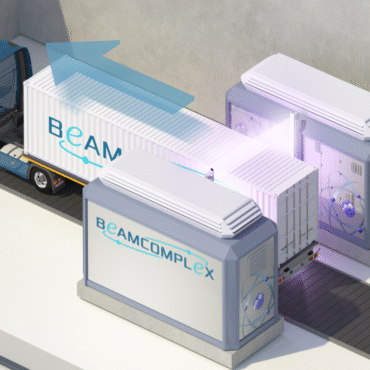

Phytosanitary treatment of products by X-Ray radiation through the walls of closed containers
An ideal solution for processing commercial batches and export shipments
Model: E-BEAMBOX B5.XRAY.C

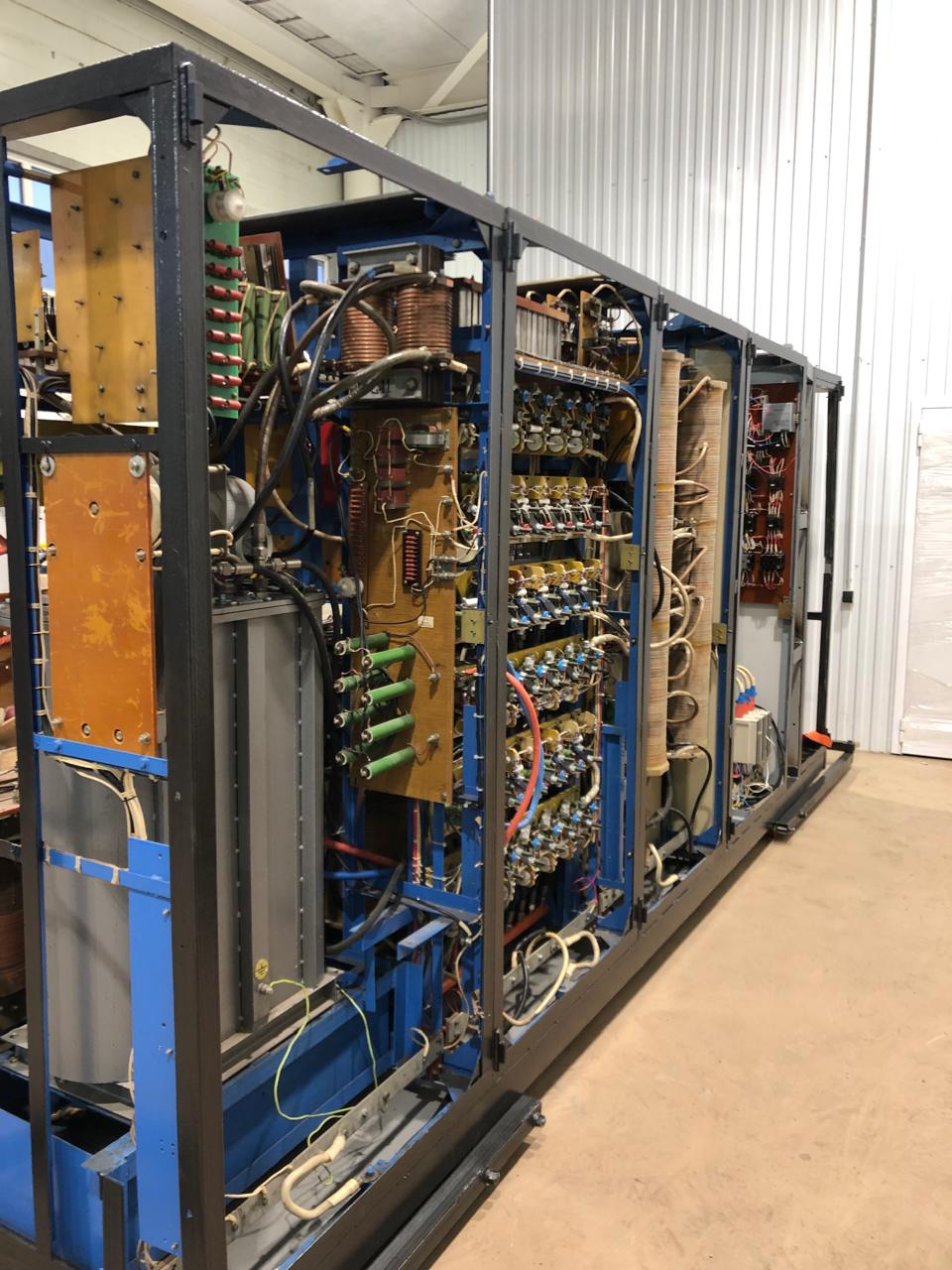

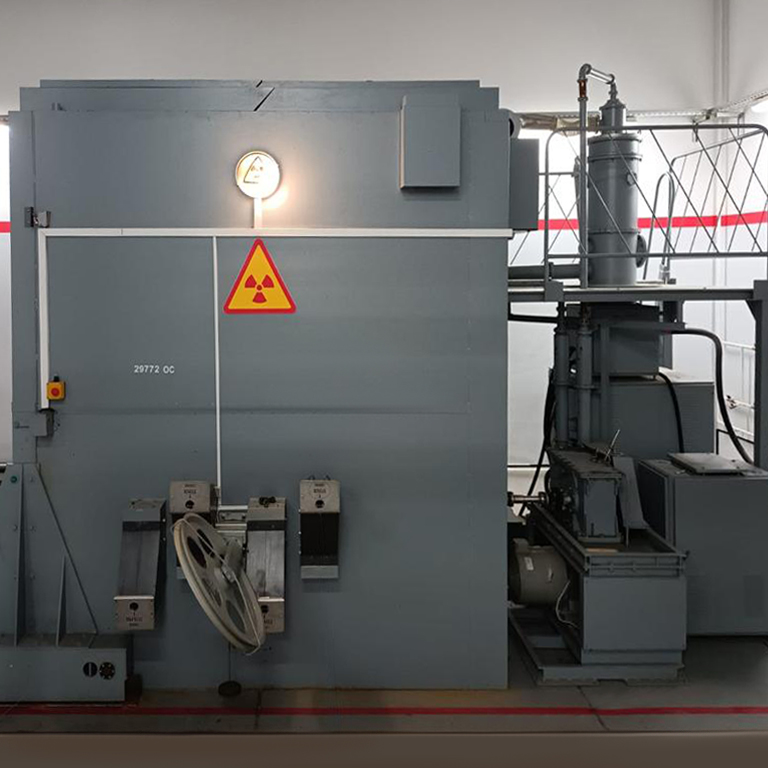

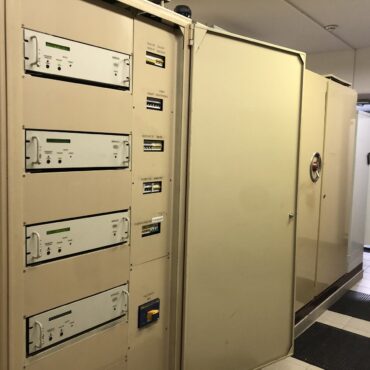

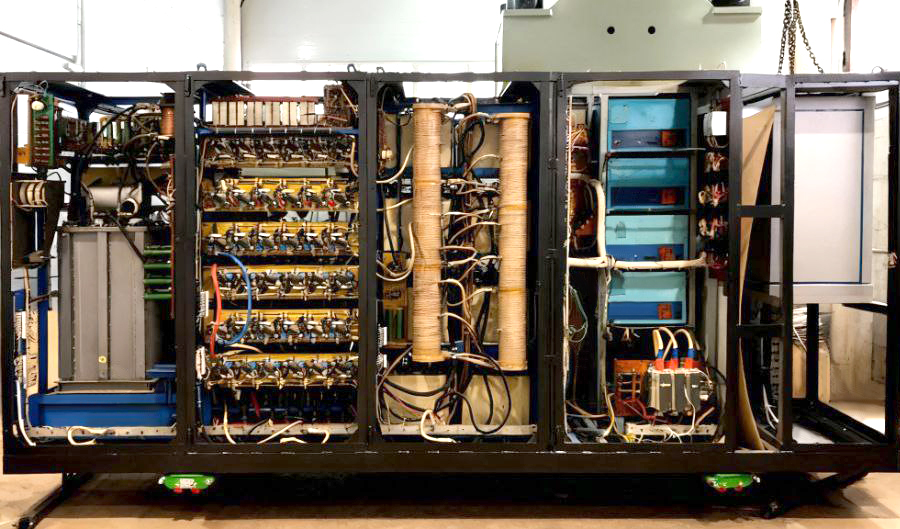

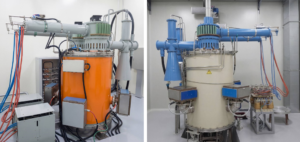

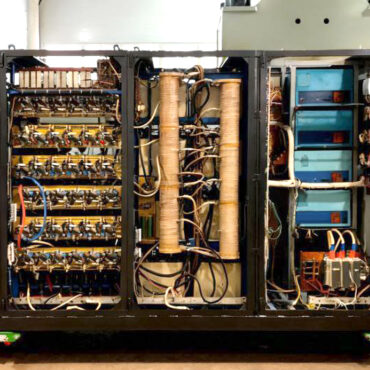

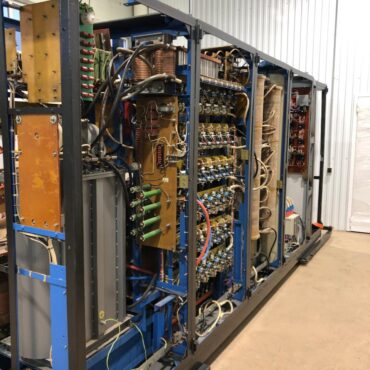

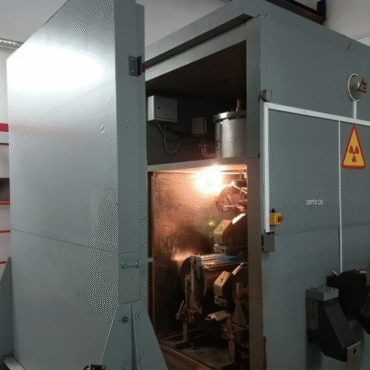

KEY ELEMENT OF E-BEAMBOX – Electron accelerator
Beamcomplex manufactures E-Beambox with electron accelerators, food processing equipment 1-5 MeV. The boxes with electron accelerators are built to order and equipped with special equipment considering a type of products to be processed. The two-side outlet device of the accelerator allows processing products with E-beam and X-Ray both vertically (for products in boxes) and horizontally (for products on pallets).

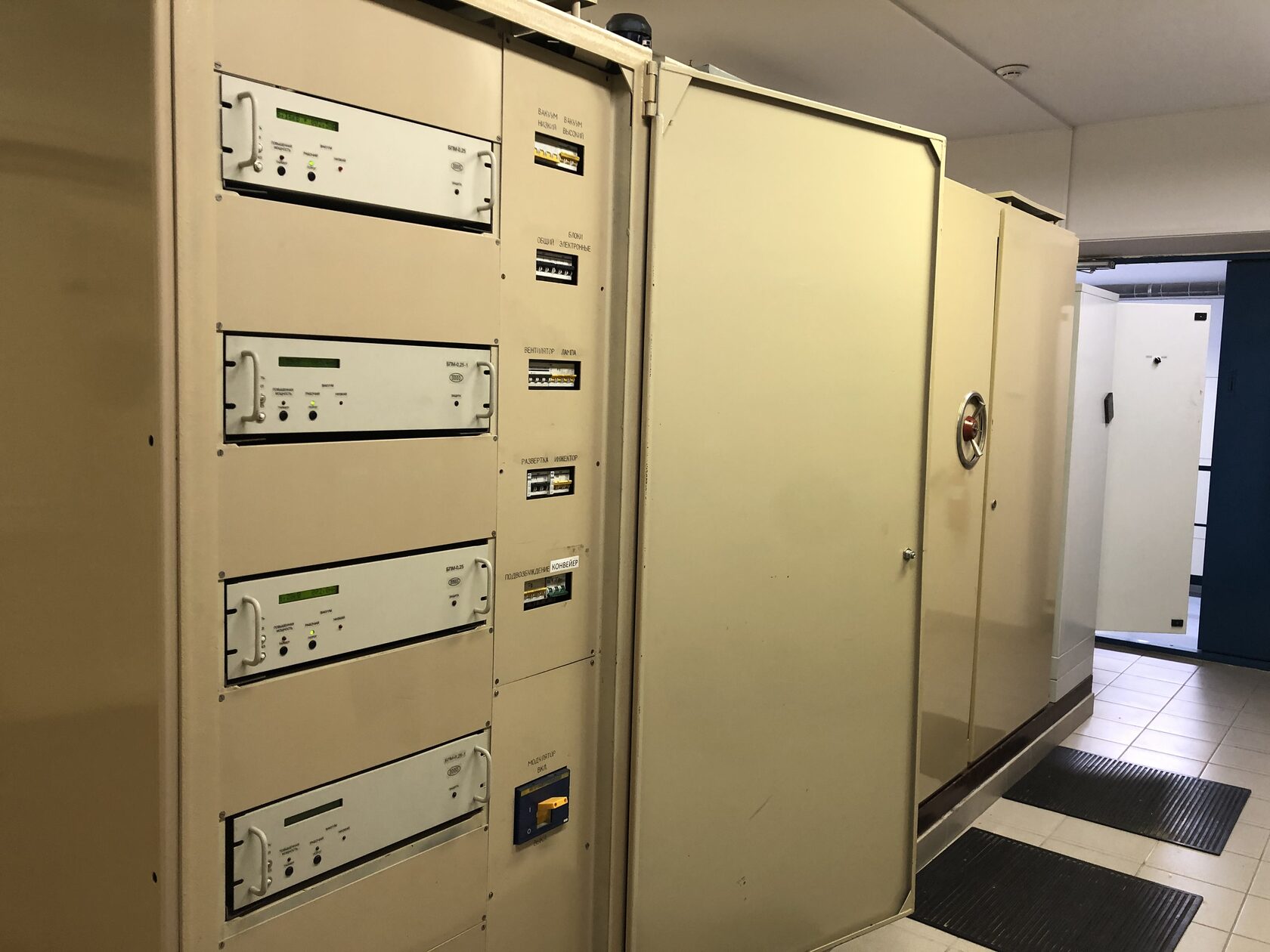

5 MeV, 50 kW | 5 MeV, 100 kW

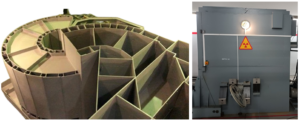

RADIATION SHIELDS

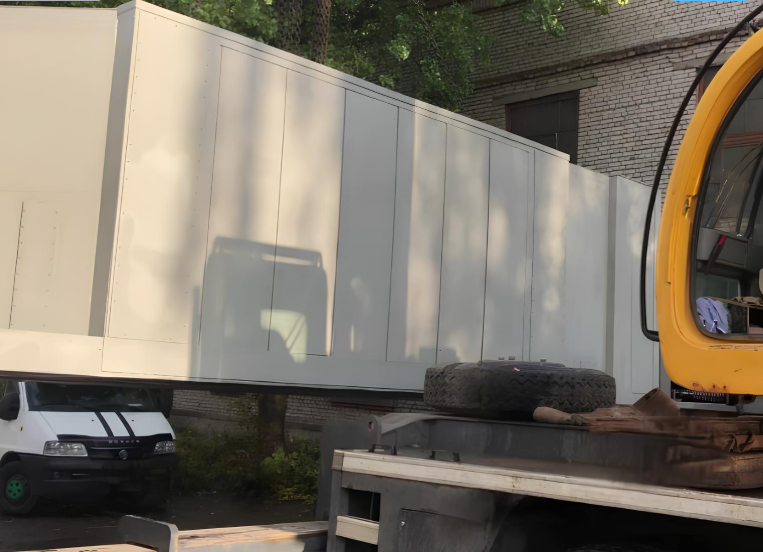

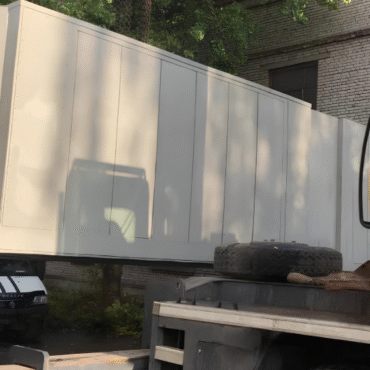

Metal radiation shields

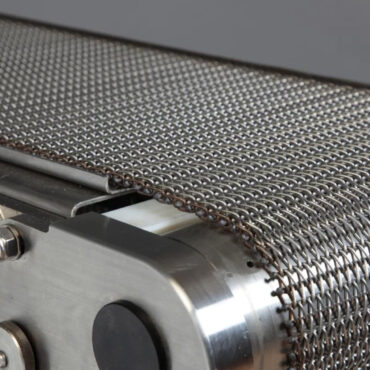

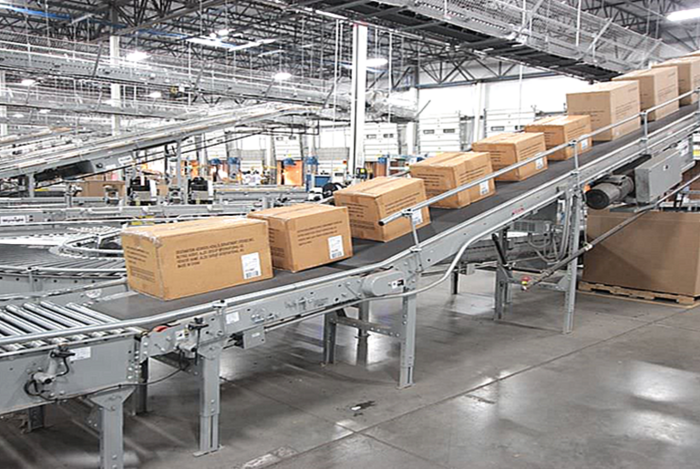

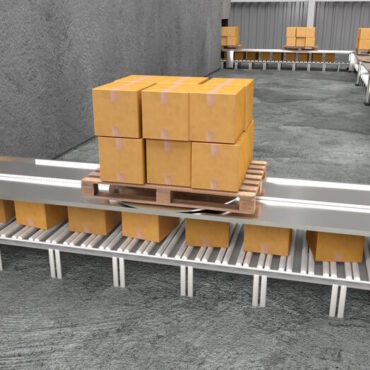

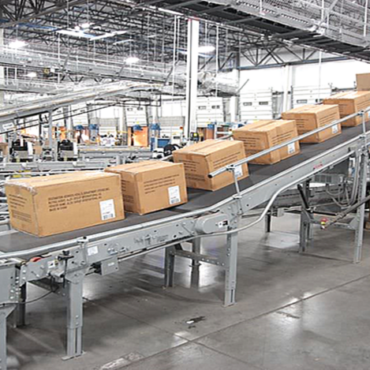

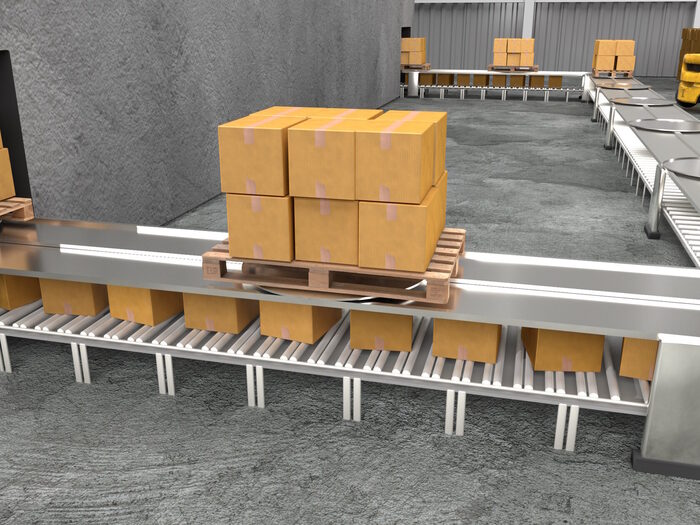

CONVEYOR SYSTEMS

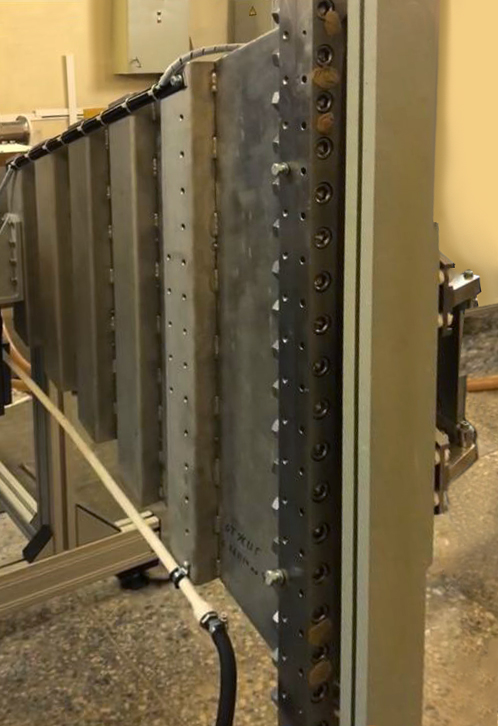

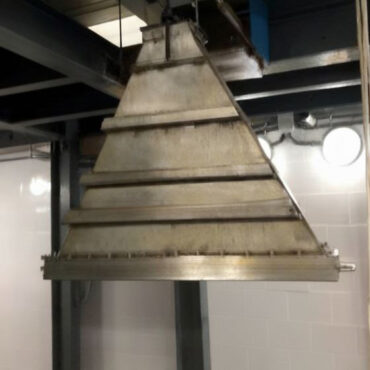

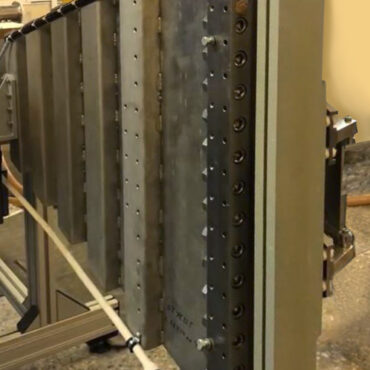

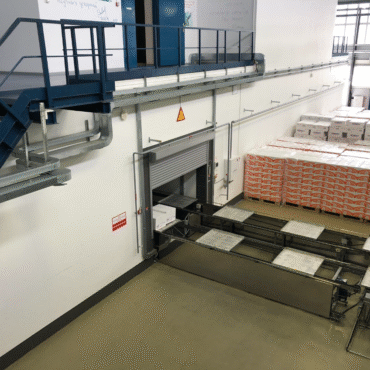

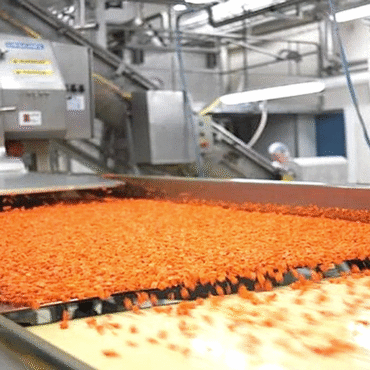

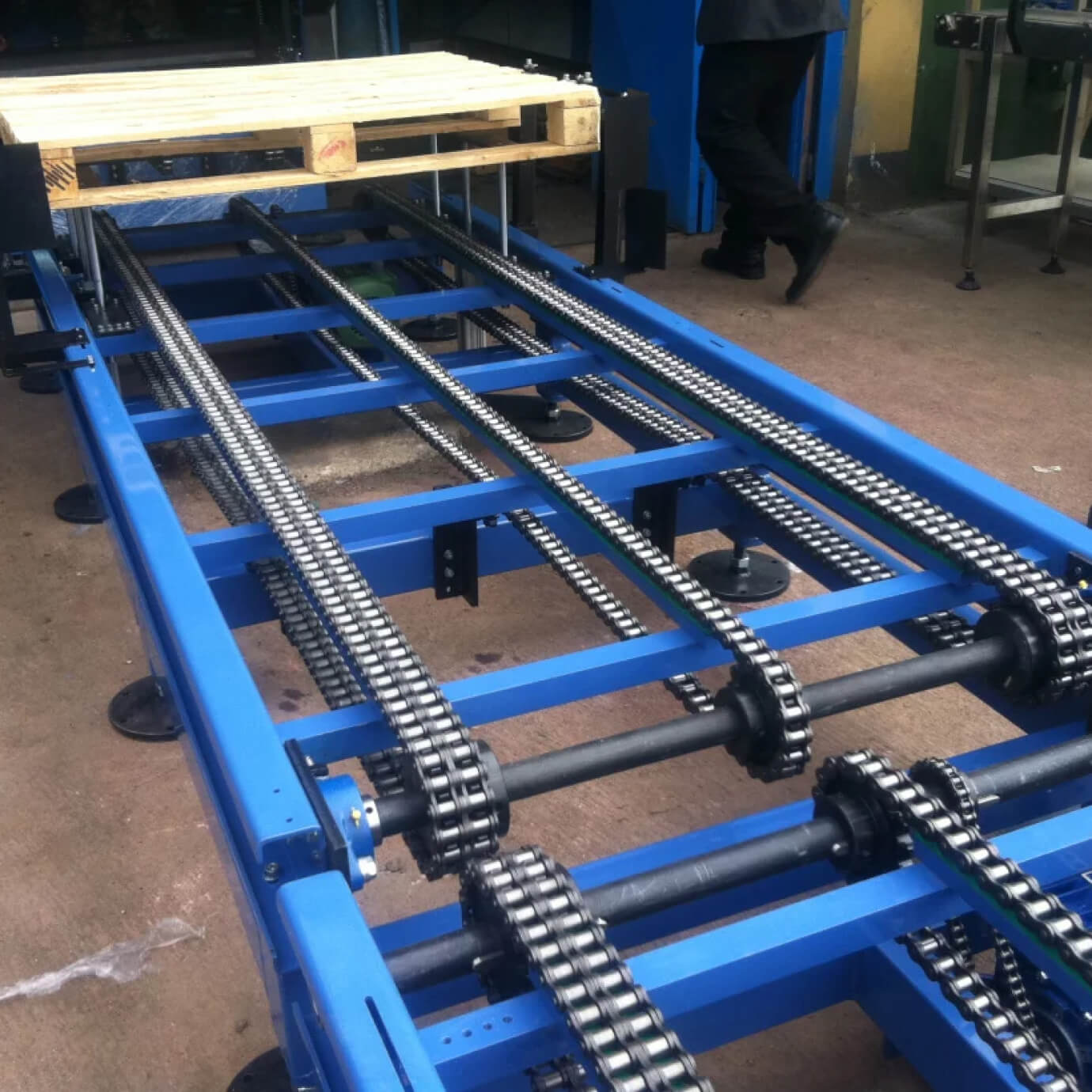

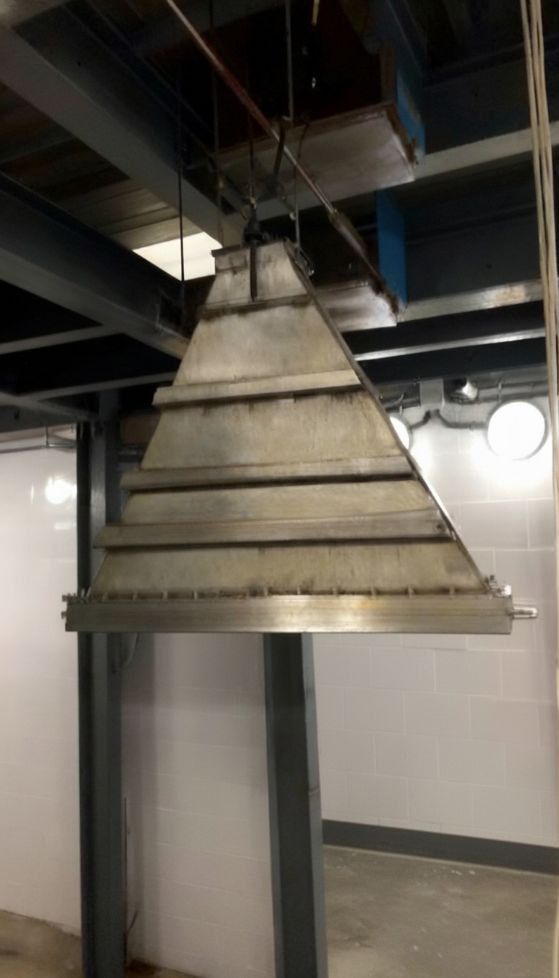

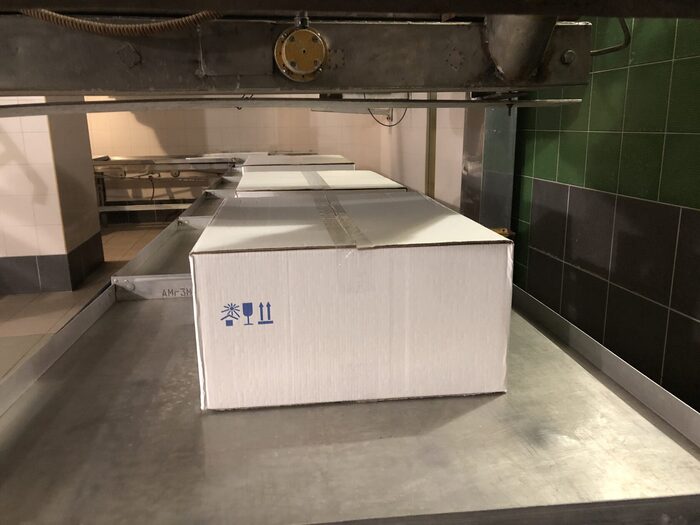

Conveyor systems for products in bulk, in boxes, boxes on pallets | Two-side outlet device to treat products veritcally and horizontally
We are ready to answer all your questions!
