SUBSTITUTION OF CO-60 WITH ELECTRON ACCELERATOR

INSTALL OUR ELECTRON ACCELERATOR ONCE, PAY ONLY FOR POWER AFTER!

---

ADVANTAGES OF REPLACING CO-60 RESOURCES WITH OUR ELECTRON ACCELERATORS

Beamcomplex provides a seamless transition from Co-60 sources to electron accelerators in existing gamma irradiation centers on flexible payment terms (three year installment plan, discounts, etc.)

Beamcomplex electron accelerators are available in two models:

• Electron accelerator with an energy of 5 MeV and a power of 50 kW which is equivalent to 330 kCi in gamma radiation.
• Electron accelerator with an energy of 5 MeV and a power of 100 kW, equivalent to 660 kCi in gamma radiation.

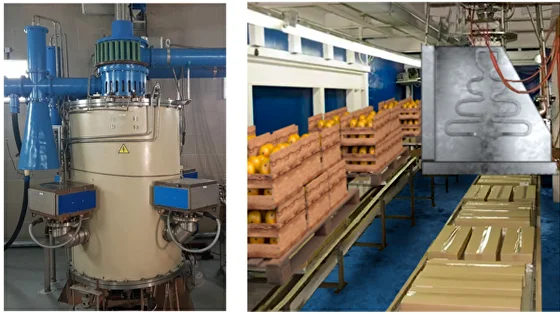

The electron accelerator’s outlet device has two windows. One window emits E-beam and X-Ray, which irradiate boxes and bags with products vertically; the second window emits X-Ray which irradiates products on pallets horizontally.

If we bring into correlation the cost of the accelerator to the amount of the produced X-Ray, corrected to kCi, then the cost of 1 kCi will vary from USD 3.5 to 4.5.

ELECTRON ACCELERATOR INSTALLATION OPTIONS

1. The electron accelerator may be installed in a bunker after Co-60 disposal. In this case, the existing bunker, as well as the conveyor system and all equipment will be used without changes. It will only be necessary to increase the total energy supply to the facility.
2. The electron accelerator may be installed to replace Co-60 during its use and until its disposal. Such option has two variations:

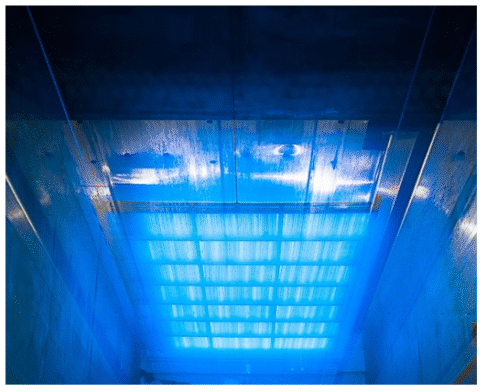

   — in case of wet storage of Co-60 and processing products underwater, it is possible to place the electron accelerator in a room with Co-60. This will require the installation of a new conveyor system and the construction of concrete radiation shield for the module with an electron accelerator. As a result, wet product processing with Co-60, as well as product processing with E-beam/X-Ray using the the complex can be carried out in parallel until Co-60 is disposed. After disposal, the center’s specialists will process the products only at the complex.

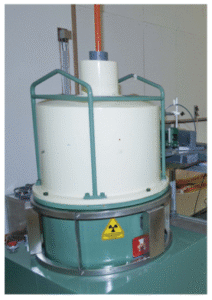

   — in case of dry storage of Co-60 and product processing in a concrete bunker, it is necessary to locate the accelerator in the adjacent room and ensure its local radiation shield (concrete/metal). In this case, it is possible to use the existing conveyor system and, if the old bunker configuration allows, E-beam/X-rays can be directed into the bunker with Co-60 through a slot in the wall to irradiate the products with both Co-60 and E-beam/X-Ray in parallel until Co-60 is disposed.

Advantages of smooth transition from Co-60 to electron accelerator:

1. Electron accelerator could replace Co-60 of both wet and dry storage.
2. By installing the electron accelerator before Co-60 is disposed, you ensure an uninterrupted transition of product processing from Co-60 to E-beam/X-Ray while retaining customers and eliminating the risk of financial losses.
3. The specialists are trained to work on the electron accelerator in advance.
4. The full scope of documents permitting operation of the electron accelerator and product processing in E-beam/X-Ray modes is prepared in advance.

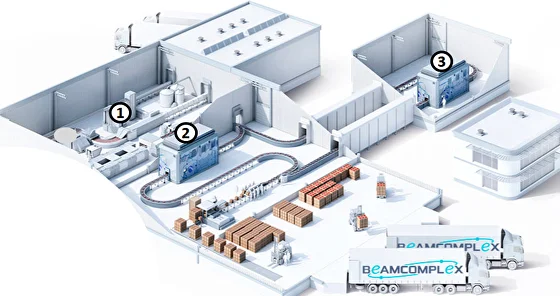

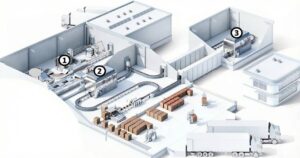

1. Co-60 Source
2. Electron Accelerator in Workshop 1
3. Electron Accelerator in Workshop 2

OPERATIONAL ADVANTAGES OF BEAMCOMPLEX ELECTRON ACCELERATOR COMPARED TO CO-60 SOURCES
